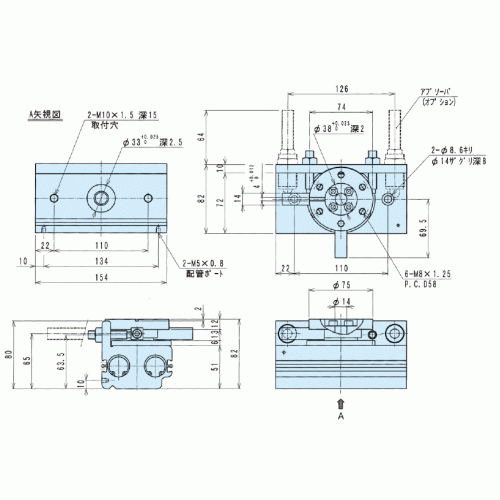

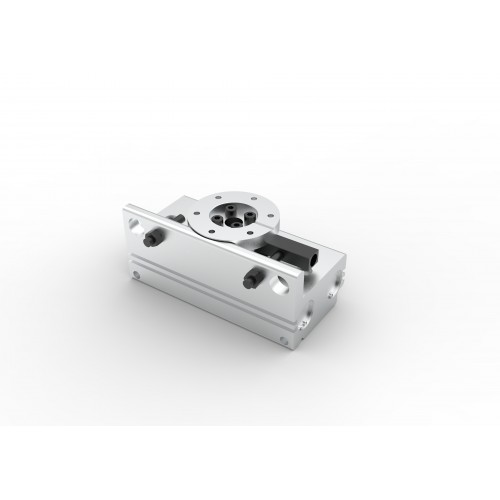

・Cylinder diameter (mm): φ25, rotation angle: 180°

・Uses a thin, high-torque double piston system.

・High rigidity achieved by using large bearings.

・Hollow type, so piping and wiring can be neatly stored.

・Rotating table specification for easy installation.

・Uses an external stopper that is resistant to impacts.

・Drive source: Air (P=0.2-0.8MPa)

・Rotation angle: 90° (adjustable ±5° on one side, ±10° on both sides)

・Rotation time: 0.1-1.5s/90°

・Cylinder diameter (mm): Φ25

・Hollow diameter (mm): φ14

・Allowable load moment M (N・m): 12.1

*This product is a standard product from Kondo Seisakusho.
