Change for Model No. 193511, TR-1062-1

Features: ● Suction pads that comply with FDA and BfR and can be used on food.

                   Can be used in the same way as existing silicone (brown) pads.

                  ● Applicable workpieces: Workpiece with an angled suction surface

                   ● Excellent heat resistance and alcohol resistance.

                   ● Excellent fit, flexibly follows the shape and posture of the workpiece.

                   ● Easy installation with suction stems.

Specifications:

                   ● Type: Small series

                   ● Suction Stems apply: Suction stems Small: VFIL-S、VFILB-SH series

                   ● Pad type: Bellow pad

                   ● Embedded type

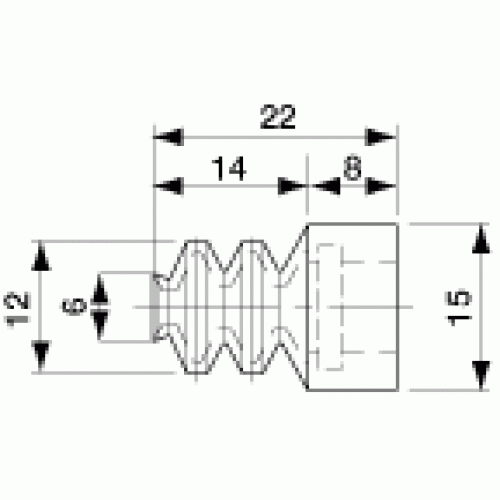

                    ● Pad outer diameter: ф6

                    ● Color: Blue

                    ● Height (mm): 22

Material:   ● Silicone (compliant with FDA and BfR)

                    ● Heat resistance temperature (℃): -60 to 250

                    ● Hardness: Shore A 50±5
