Model change from No. 090203 J25410-30A

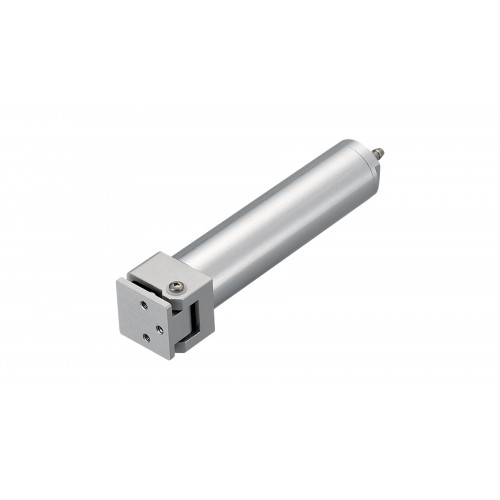

●Special cylinder with hinge structure that moves 90°.
●Can be directly attached to Jungle Gym series fittings.
●Structure: Single acting type
●Air pressure used: 0.3-0.5Mpa
●Torque (Nm): 0.06
●Pipe fitting BF-5 included
●Pipe (mm): Inner diameter ф2-2.7 (varies depending on material)
●Movement range (°): 90
●Mounting diameter: ф20
●Total length x total width x total height (mm): (107.9) x (20) x (25.5)
Tags: NEW !
PIPE COMBINATION CHUCK D PHI.20/DIG.90
- Product Code: 090264
- Model: J25410-30B
- Availability: In Stock
