Features:

● Equipped with a unique release mechanism. (Patent No. 4126074)

● Air options can be added.

Specifications:

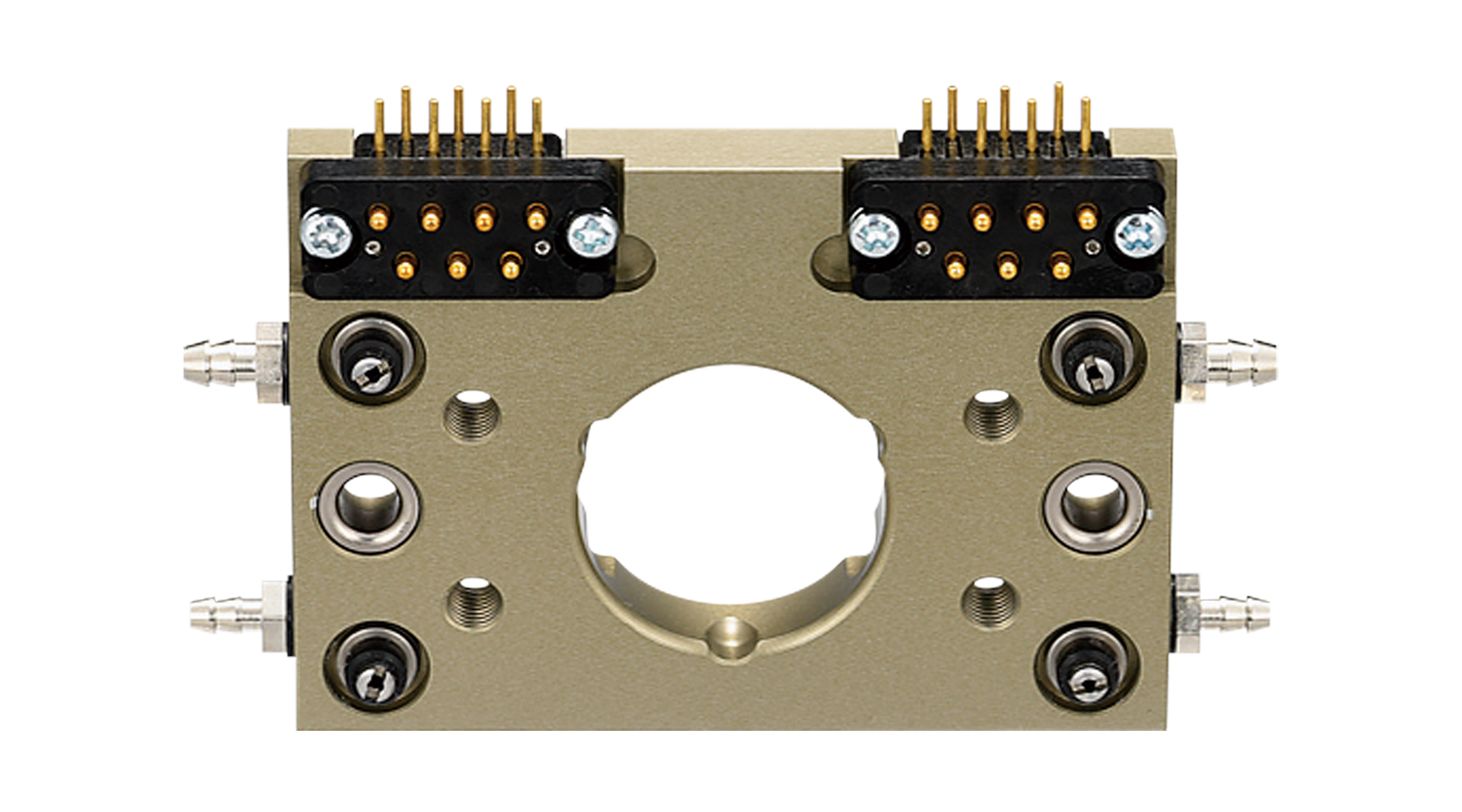

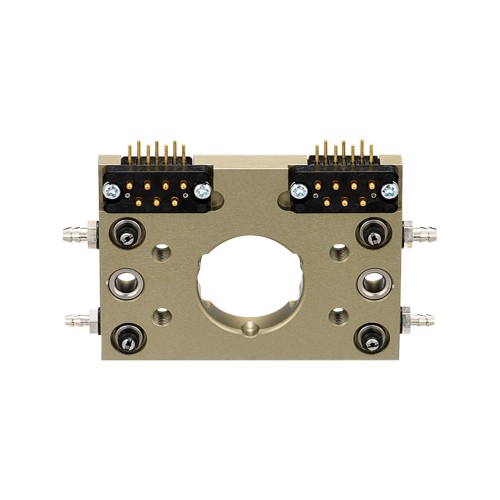

● Mounting Position: Tool Side

● Load Capacity (kg): Up to 3Kg

● Connected Thickness (mm): 29

● Operating Air Pressure: 0.5-0.7 MPa

● Body Material: Super Duralumin

● Piping Fittings: 2-Circuit BF-5 (Included) ・2-Circuit BF-6 (Included)

● Piping (mm): 2-Circuit BF-6 - Inner Diameter φ3-4 (Varies depending on material)

                           2-Circuit BF-5 - Inner Diameter φ2-2.7 (Varies depending on material)

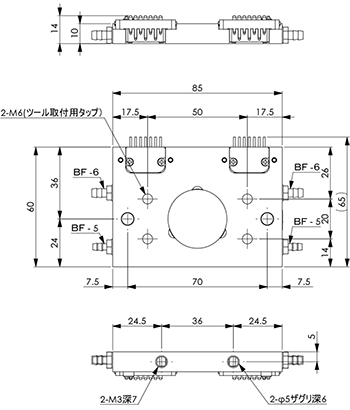

● Mounting Screw: 4-M6

● Mounting Pitch (mm): 20 x 50

● Overall Length x Width x Height (mm): 85 x 13.5 x 65

● Electrical Contacts: 7-Core x 2 (1A DC24V Max)

●Connector Type: Probe Connector (Solder Type)

●Compatible Wire: AWG20 or Less
